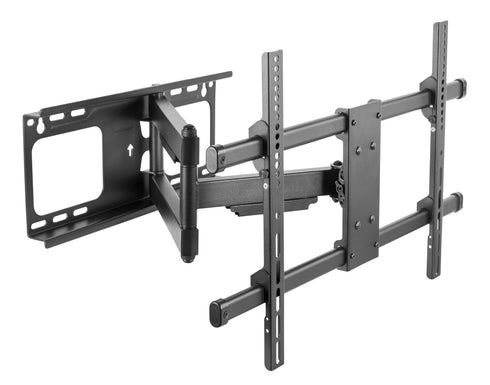

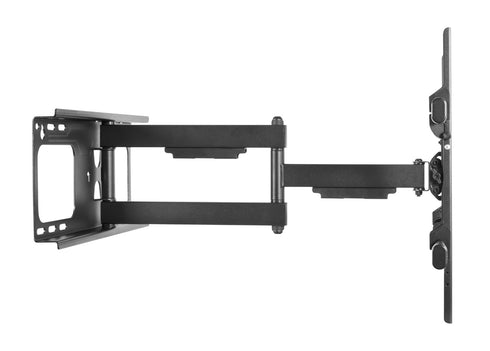

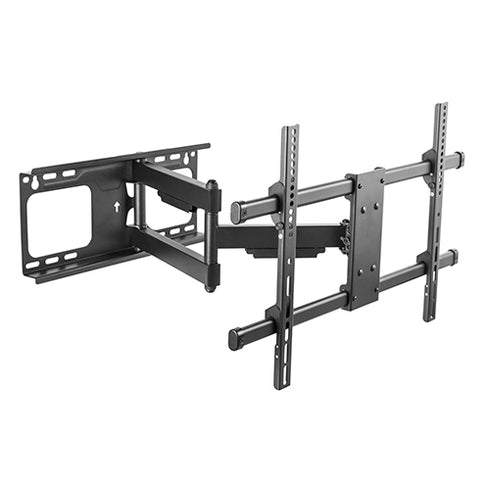

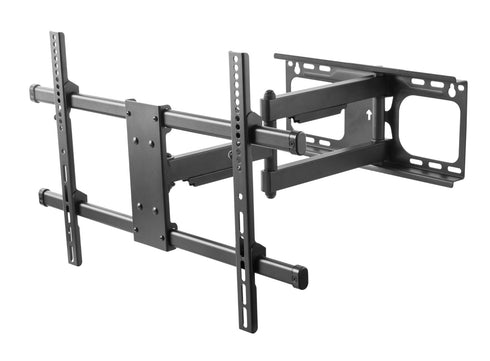

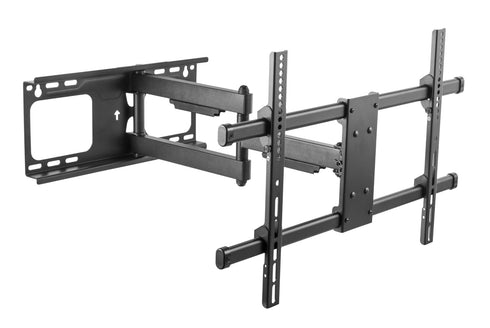

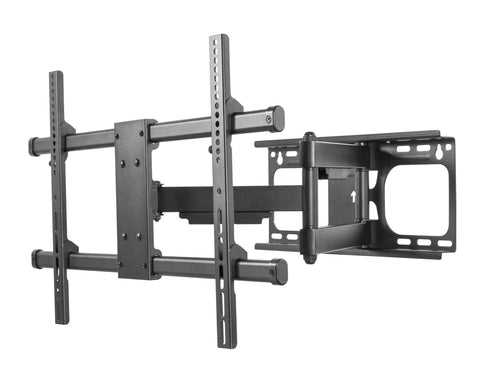

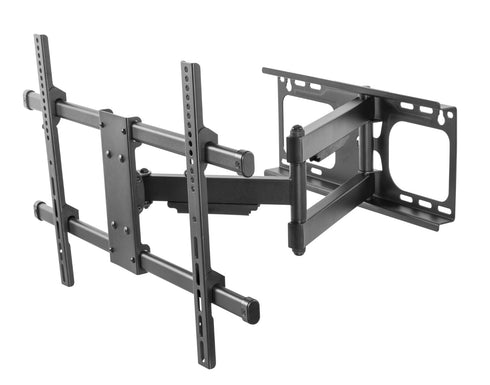

Brateck Βάση TV Βαρέως Τύπου LPA49-463D 37" - 70"
ΚΩΔΙΚΟΣ: 03.009.0021
ΤΥΠΟΣ ΠΡΟΪΟΝΤΟΣ: Βάσεις Τηλεοράσεων
BRAND: Brateck
Βιαστείτε! Οι εκπτώσεις τελειώνουν σε
HEAVY-DUTY FULL-MOTION TV WALL MOUNTFor most 37"-70" LED, LCD Curved ＆ Flat Panel TVs
DESCRIPTION

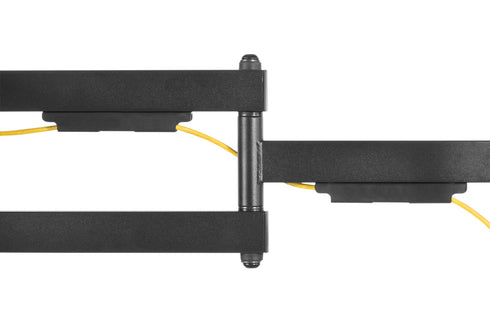

The new solid large full motion mount is constructed with high gauge steel that designed for most 37"-70" flat panel TVs up to 60kg/132lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (615mm extension) and angled towards a separate viewing area. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look.
SPECIFICATIONS
Product Category:
Full-motion TV Wall Mount
Rank:
Standard
Material:
Steel
Metal Sheet Thickness:
Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size:
40x25x1.5mm,40x20x1.5mm (1.6"x0.98"x0.059",1.6"x0.79"x0.059")
Surface Finish:
Powder Coating
Color:
Fine Texture Black

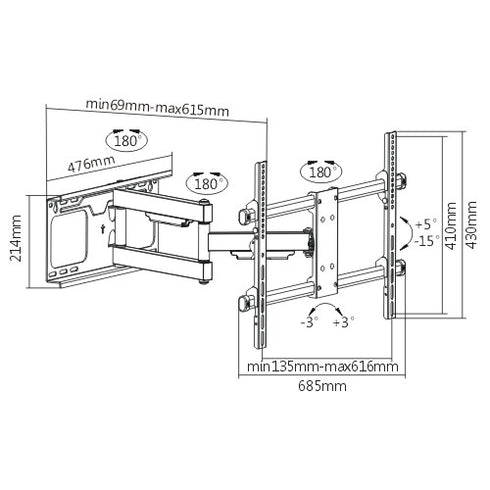

Dimensions:
615x685x430mm (24.2"x27"x16.9")
Fit Screen Size:
37"-70"
Fit Curved TV:
Yes
Mounting Hole Pattern :
VESA & Universal
VESA Compatible:
200x200,400x200,300x300,400x400,600x400
Max. Mounting Hole:
600x400
Weight Capacity:
60kg (132lbs)
Strength Tested:
4 Times Approved
Profile:
69~615mm (2.7"~24.2")

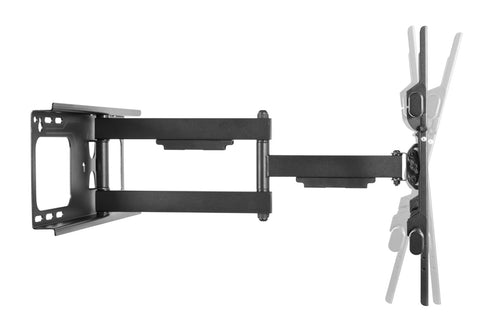

Tilt Range:
＋5°～-15°
Swivel Range:
+90°~-90°
Screen Level:
+3°~-3°
Screen Freely Tilting:
Yes
Installation:
Solid Wall,Double Stud(406mm/450mm)
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Cable Management:
Yes
Anti-theft:
No
Bubble Level:
Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:
Normal/Ziplock Polybag,Compartment Polybag
Certification:
CA 65
